DC POWER CONNECTORS

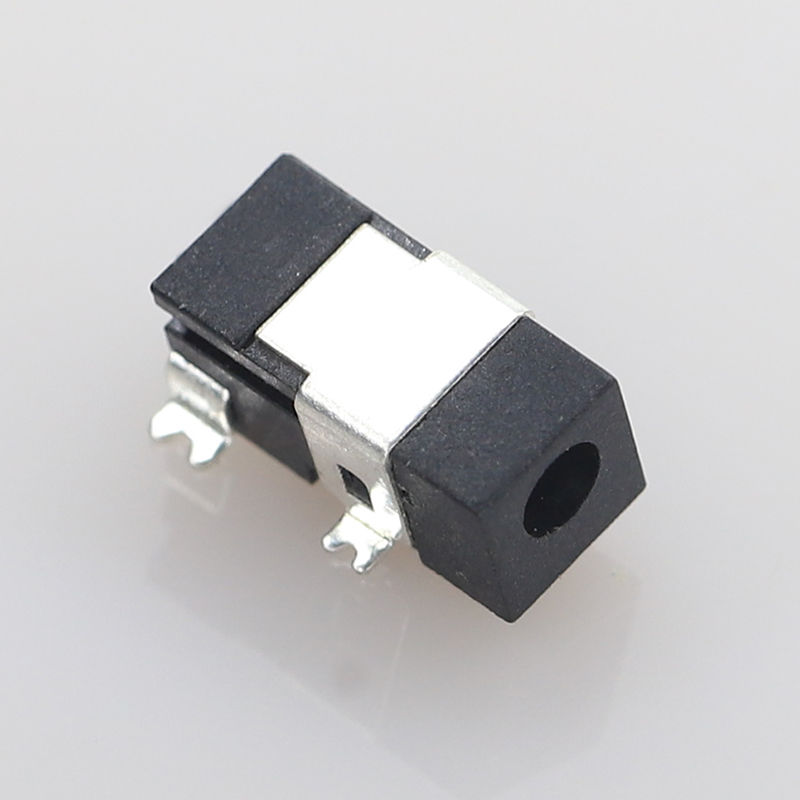

PCB Mount DC Power Jack

Product Features
1.0mm and 1.3 mm
Built-In DC On/Off Switch
Laptop and Palm Computers, Portable Modems, Radar
Detectors, and Other Portable Device Applications

Performance Specifications
Materials and Finish
Plastic Housing: PBT, UL94V-0 Rated, Black Color
Center Pin: Copper Alloy, Nickel Plated
Contact #1 and #3: Brass Tin, Plated
Contact #2: Phosphor Bronze, Tin Plated

Electrical Characteristics
Before Durability Test
Between Terminals: 30 milliohms Max.
Plug to Contacts: 50 milliohms Max.
After Durability Test
Between Terminals: 60 milliohms Max.
Plug to Contacts: 100 milliohms Max.
Rated Voltage: 24V DC
Rated Current: See Drawing
Insulation Resistance: 100 Megohms Min. at 500V DC
Dielectric Withstanding Voltage: 500V AC RMS for 1 Minute

Mechanical Characteristics
Durability Test: 5000 Cycles
Insertion Force: 0.3kg - 2.5kg
Extraction Force: 0.3kg - 2.5kg
Operating Temperature: -25˚C to +85˚C
