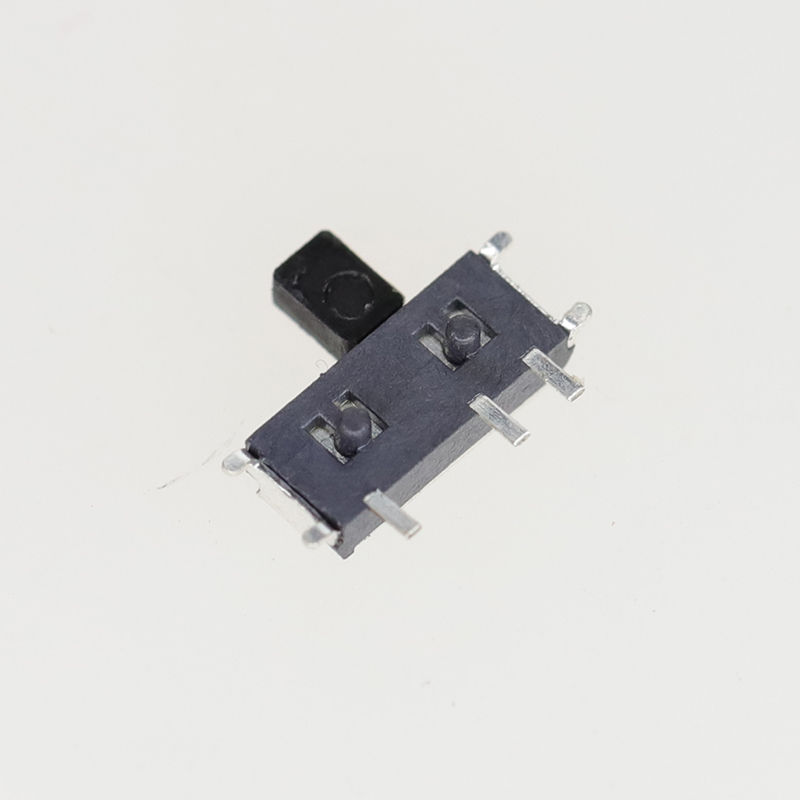

This MSK series is a compact mini slide switch (1P2T or 2P2T) designed for low-current signal switching applications. With stable electrical performance and durable mechanical structure, it is widely used in consumer electronics and control devices.

Type: Slide Switch (1P2T)
Contact Type: Shorting
Rated Voltage & Current: DC 12V / 50mA
Operating Temperature: -25℃ to +80℃

Electrical Performance
Contact Resistance: ≤ 100mΩ
Insulation Resistance: ≥ 100MΩ (DC 500V, 1 min)
Withstand Voltage: AC 500V (1 min, no breakdown)
Ensures stable signal switching and high insulation reliability


Mechanical Performance
Operating Force: 200gf ±50gf
Terminal Strength: No damage under 300gf force (15 sec)
Actuator Strength: No deformation under 10N load
Provides smooth switching and strong mechanical durability


Durability & Reliability
Life Cycle: ≥ 10,000 cycles
Solderability: ≥ 75% solder coverage
Heat Resistance: 250℃ soldering (2 sec)

Environmental Tests:
Cold Resistance: -25℃ / 48h
Heat Resistance: 70℃ / 48h
Humidity: 40℃ / 90–95% RH / 96h
Suitable for various environmental conditions


Applications
Consumer electronics
Small appliances
Control panels
Communication devices

✔ Compact size, easy integration
✔ Smooth and stable switching
✔ Reliable electrical performance
✔ Long service life
